商品の詳細:
|

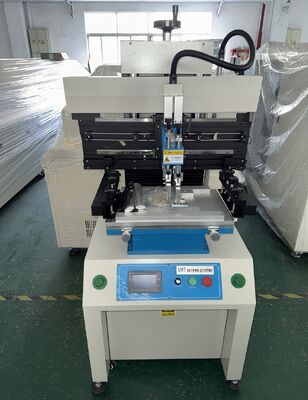

| はんだペーストプリンター: | セミオート孔版印刷機 CHM-3250 | nの場所のmahcineを選びなさい: | チャームハイ chm-551p (4頭) |
|---|---|---|---|
| リフローオーブン: | CHM-F830-PC (4ゾーン、上4+下4、レール付き、PC付き) | 他の機械: | SMTコンベア 50/60cm |
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service. We always provide spare parts of machine, factory reliable direct supply. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service. Each machine 100% tested well before ship out. If you want to see more information and videos, please contact us by email. We will respond to you at the first time.Small & High Precision 4-head SMT Line PCBA Manufacturing PCB Assembly

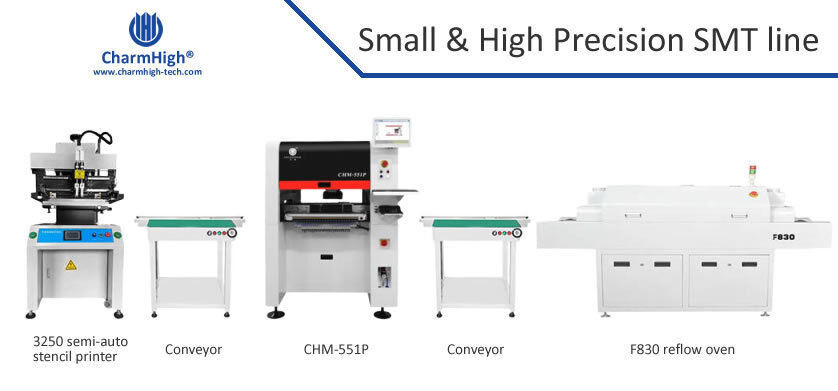

Complete small-scale, high-precision Surface Mount Technology line for PCB assembly manufacturing, featuring advanced automation and precision components.
Package Contents

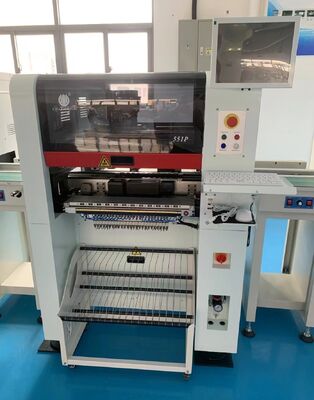

CHM-551P Specifications
Dimensions
1020mm(L) x 1180mm(W) x 1450mm(H)
Weight
556kg
Power Supply
AC220V (50Hz, single phase) 1.5kw (average power 350w)
Air Supply
0.5MPa ~ 0.7MPa
Vacuum Generation
Built-in vacuum pump
Mounting Head Quantity
4 heads
Mounting Speed
14400CPH (optimal)
Mounting Accuracy
(XY)±0.035mm; CPK≥1.0
Component Height
12mm
Component Type
0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)
0201 to larger component 30*30mm size
PCB Thickness
0.6mm~3.5mm
PCB Size
350mm(L)x270mm(W) (Standard)
600mm(L)x350mm(W) (Optional)
Nozzle Change
Automatic nozzle change (13-hole nozzle library)
Control System
Linux system, equipped with monitor, keyboard, and mouse
Drive System
X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration
Transmission System
Ball screw + linear guide
Feeding System
50 Yamaha 8mm standard pneumatic/electric feeder stacks
(also suitable for IC tray and stick feeder)
Vision System
Snapshot camerax4 (component size applicable: 14mm×14mm)
IC camerax1 (component size applicable: 30mm×30mm)

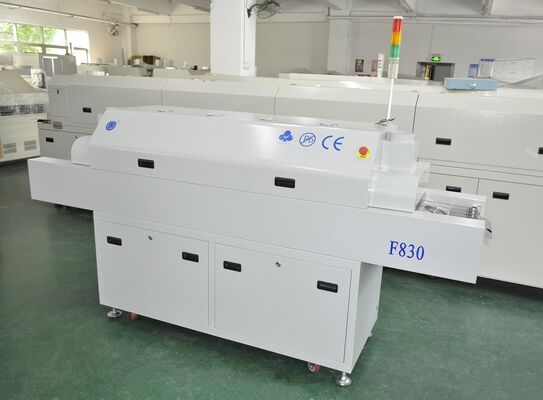

Mark camerax2F830 Reflow Oven Specifications
Model
CHM-F830
Number of Heating Zones
Up 4 + Bottom 4
Length of Heating Zones
1400mm
Heating Pattern
Up: Hot air; Bottom: Hot air (Forced convection of hot air, Taiwan SAYA motor)
Number of Cooling Zones
2 Plasma DC Fan
Max. Width Of PCB
300mm (stainless steel mesh belt)
Conveyor Direction
L->R
Conveyor Height
880±20mm
Transport Mode
Mesh Belt
Conveyor Speed Range
0-2200mm/min
Power Supply
5 Wire, 3 Phase, 380V 50/60Hz
Start Power
10KW
Power Consumption
Approx 2.5KW
Warming Time
Approx 15-20 mins
Temp. Setting Range
Room Temp.- 380℃
Temperature Control Method
Instrument-controlled
Temperature Difference Between Adjacent Zone
70 ℃, can correspond to the highest standards of lead-free process
Temperature Control Precision
±2℃
Temperature Deviation on PCB
±2℃
Abnormal Alarm
Temperature abnormal (too high or too low after the constant temperature keeping)
Open Way
Manual
Dimension(L*W*H)mm
2500*650*1400MM
Weight
Approx 220Kg
Product Images
Warranty & Support
Technical Support
Kimi Liu
Mobile: +86 135 106 75756
Email: kimi@charmhigh-tech.com
コンタクトパーソン: Kimi Liu
電話番号: +86 135 106 75756
ファックス: 86-131-0721-9945
