Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines

認証
中国 CHARMHIGH  TECHNOLOGY  LIMITED 認証
中国 CHARMHIGH  TECHNOLOGY  LIMITED 認証
顧客の検討
極度のquanlity、速い郵送物。すべてがhappliy行ったKimi劉のおかげで特別な!顧客全員はあなたのサポートのための愛さなければならない。

—— クロウドGatys -ポーランド

3つの項目はすべて私は部品を置くPnP機械があった1時間以内にしっかり、包まれて着いた。、正確速い使いやすく、組み立て。Tsop48問題無し。

—— ベンGrimmett -オーストラリア

丁度ように記述されている。地球の反対側からの極度の速い船積み!機械はテストでこれまでのところ大きい。素晴らしいカスタマー サービス。私はそれらとのビジネスをまたやる。

—— テリーTorres-米国

これは非常によく設計され、組立てられるすばらしい機械である。Charmhighの代表はよい英語と非常に敏感だった。

—— カール ウォルター-米国

この機械、それの安価によってだまされなくて意外にもよく造られたり、優秀なパッケージ来たしなさい。それはかなり一貫して動く。

—— 印Janes -イギリス

大きいプロダクト、速い出荷の容易なコミュニケーション。

—— Dian Kurniawan -インドネシア

Charmhighは非常によいサービスを提供し、あらゆる私がすぐにそして非常に有用持っていた質問に答えた。私は主関数を、すべてよいworkdsテストした。

—— Rajko Brenscheid -ドイツ

オンラインです

Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines

Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines
Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines

大画像 :  Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines

商品の詳細:
起源の場所: 中国
ブランド名: Charmhigh
証明: CE
モデル番号: CHM-780, CHM-850, CHM-950
ドキュメント: SMT reel tape cutter.pdf
お支払配送条件:
最小注文数量: 1
価格: $1380 free shipping
パッケージの詳細: ベニヤ箱
受渡し時間: 5~7日
支払条件: ペイパル、T/T
供給の能力: 1か月あたり200

Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines

説明
電圧: 220V/ 110V のために: 異なるピックアンドプレースマシン

Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines
Product Overview

CHM-950 Automatic Belt Cutting Machine SMT Tape Cutter for Samsung Hanwha Pick & Place Machine

Direct buy online from our online store:
https://www.charmhigh-smt.com/sale-446159-free-shipping-automatic-smt-reel-tape-cutter-chm-780-hand-free-tape-cutting-machine-220v-for-smt-pick-and-place-machine.htm


CHM-950 automatic belt cutting machine is a professional SMT tape cutter designed specifically for Hanwha pick and place machines. With a length of 950mm (customizable according to your machine requirements), this SMT tape cutter significantly improves production efficiency while maintaining a clean workspace.

Product Specifications
Brand Name CHM / Customizable
Model Number CHM-950
Type SMT Tape Cutter
Application SMT Feeder Belt Cutting
Compatible Brand Hanwha, Samsung
Condition New
Place of Origin China
Warranty 1 Year
After-sales Service Online technical support
Application Fields

SMT Chip Mounter, SMT SMD LED pick and place machine, non-standard automation equipment, etc. Compatible with various brands including Yamaha, Juki, Charmhigh pick and place machines. Custom lengths available for specific machine requirements.

Key Features
  • Blade and cutter made of high-strength steel through heat treatment and fine grinding for durability and sharp edges
  • Reduction motor drive system with high strength, no jamming, and low noise operation
  • Multiple sensors for accurate stroke control and waste box removal detection
  • Self-developed control circuit for stable and reliable performance
Technical Specifications
  • Model Options: CHM-780 / CHM-850 / CHM-950 (different lengths)
  • Dimensions: 780mm / 850mm / 950mm (length) × 290mm × 450mm (including wheels' height)
  • Net Weight: 30kg-35kg
  • Effective Cutting Length: 470mm-640mm
  • Voltage: 220V; 50Hz; Power: 100W
  • Control Method: Switch ON/OFF, speed control by frequency, safety protection function, automatic shutdown when removing waste box
Product Images

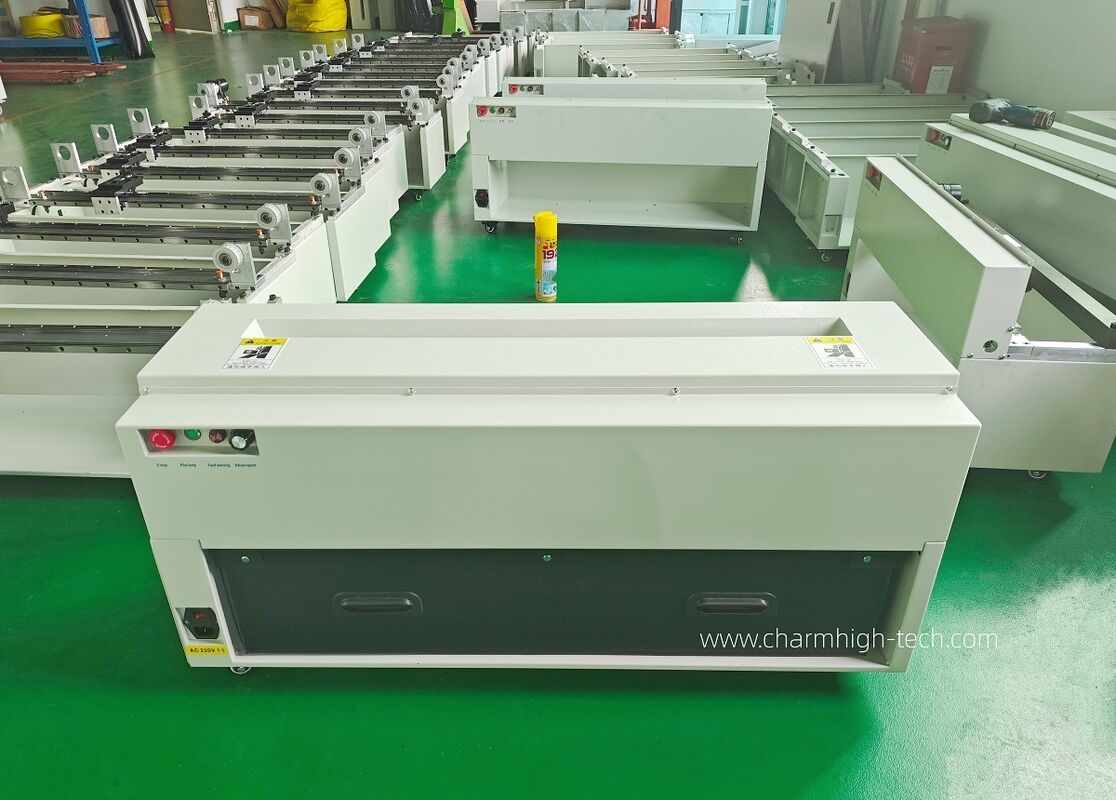

CHM-950 Automatic SMT Tape Cutter front view
CHM-950 Automatic SMT Tape Cutter side view

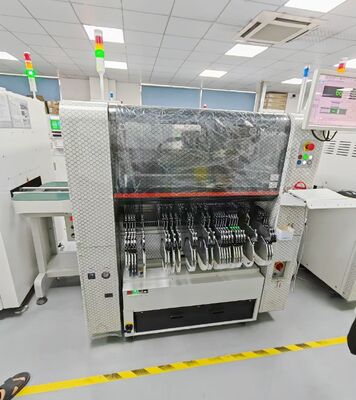

CHM-950 working with Samsung Hanwha SMT pick and place machine

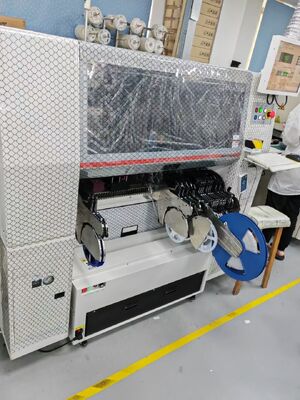

CHM-950 integrated with pick and place machine setup

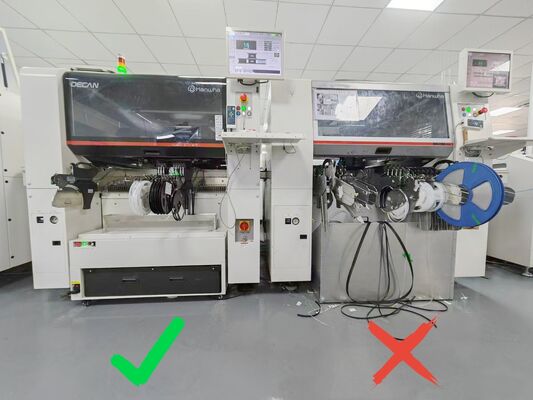

CHM-950 installed on various pick and place machine brands
CHM-950 secure packaging for shipping
Warranty & Support

The complete machine has a warranty period of 1 year from purchase date with lifetime service support. We provide reliable factory-direct spare parts, online Q&A, troubleshooting support, and technical advice services. Each machine is 100% tested before shipment.

Technical Support

Kimi's WhatsApp & Mobile: +86 135 106 75756
Email: kimi@charmhigh-tech.com
YouTube Channel: @KimiLiuCharmhigh

For additional information and videos, please contact us by email. We respond promptly to all inquiries.
