商品の詳細:
|
| 動作力: | 5-10kW | 起動電源: | 45KW |
|---|---|---|---|
| 熱帯の量: | 上8 下8 | 暖房エリア: | 3150*500mm |
| オートマティックレール: | そうだ | ウォームアップ タイム: | 約15〜20分 |
| PC制御装置: | 産業用コンピュータで | 部品の種類: | CSP,0201チップなど |
| サイズ: | L 4600*1300*1470 mm | 純重量: | 2000kg |
CHM-PC850 Full automatic rail large reflow oven + PC control 8 temperature zones (up8+down8)
Lead-free SMT Reflow Oven SMT soldering oven, heating size 3150*500mm
PC850 Big-Sized 8 Zones Lead-Free SMT Reflow Soldering Oven
| Model No. | CHM-PC850 |
| Heating Parts Parameters | |
| Number of Heating Zones | Up8 + Bottom8 |
| Length of Heating Zones | 3150mm |
| Heating Pattern | Full Hot Air (up and down in a small cycle) |
| Number of Cooling Zones | Plasma fan air-cooled plus two-stage liner cooling (length 800MM) |
| Conveyor Parts Parameters | |
| Max.Width Of PCB | Mesh width 500mm |
| Conveyor Direction | L→R |
| Conveyor Height | 880±20mm |
| Transmission Agent | Mesh + automatic rail |
| Conveyor Speed Range | 0-2000mm/min |
| Control Parts Parameters | |
| Power Supply | 5 Wire, 3 Phase, 380V |
| Start Power | 48KW |
| Power Consumption | Approx 8-10KW |
| Warming Time | Approx 20 mins |
| Temp. Setting Range | Room Temp.-380℃ |
| Temperature Control Method | PC+PID+SSR |
| Temperature Difference Between Adjacent Zone | 70 ℃, can correspond to the highest standards of lead-free process. |
| Temperature Control Precision | ±2℃ |
| Temperature Deviation on PCB | ±2℃ |
| Abnormal Alarm | Temperature abnormal(too high or too low after the constant temperature keeping) |
| Power-off Protection | UPS |
| Open Way | Electric Screw Rod |
| General Parameters | |
| Dimension(L*W*H)mm | 4600*1300*1470 mm |
| Weight | Approx 2000Kg |

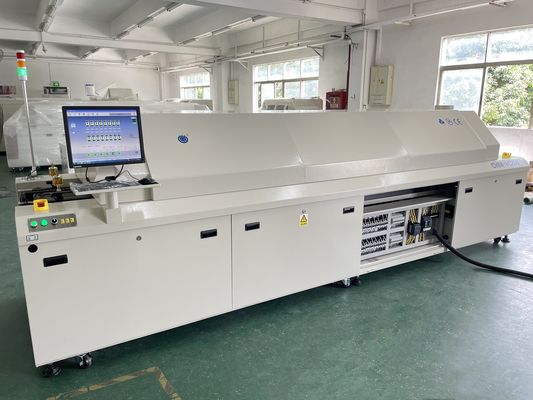

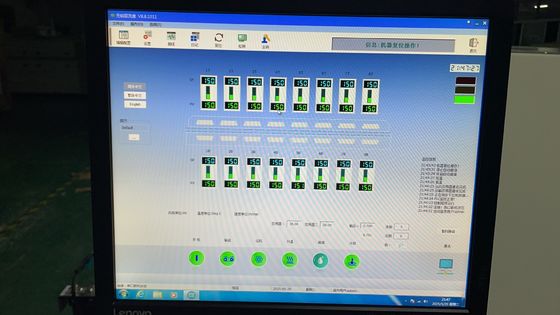

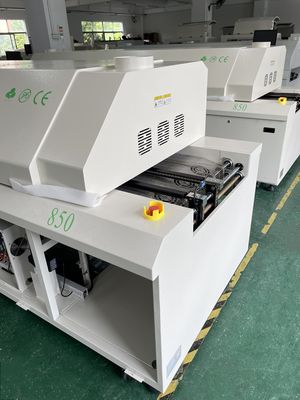

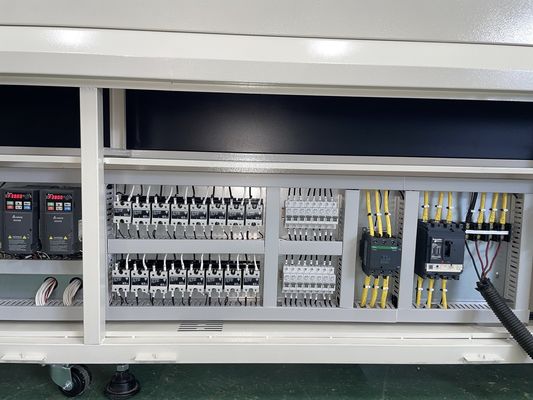

Real pictures for CHM-PC850:
Recommend large SMT production line:
1. PCB loader
2. Full-automatic solder paste printer G5
3. PCB conveyor
4. Pick and place machine TS10 (10 heads)
5. Pick and place machine TM08 (8 heads)
6. PCB conveyor
7. 8 temp. zones reflow oven CHM-PC850
8. PCB unloader
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
