商品の詳細:
|
| 最大PCBサイズ: | 350mm(L)x280mm(W) (標準) | フィーダ: | 50pcs Yamahaの送り装置（空気及び電気送り装置） |
|---|---|---|---|
| オペレーションシステム: | Linuxシステム | 基準口径測定: | 自動車は印ポイントに目盛りを付ける |
| コンポーネントの高さ: | 12mm | 設置速度: | 14400cph |
| 正味重量: | 310KG | ノズル: | 13pcsのノズルライブラリを持つ自動ノズル交換器 |
| 寸法: | 1020mm(長さ)x1180mm(幅)x1450mm(高さ) | 取り付け精度: | (XY) ±0.035mm CPK≧1.0 |

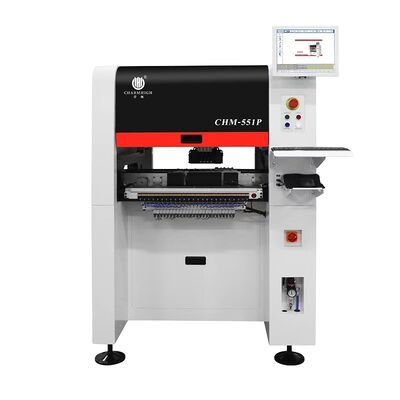

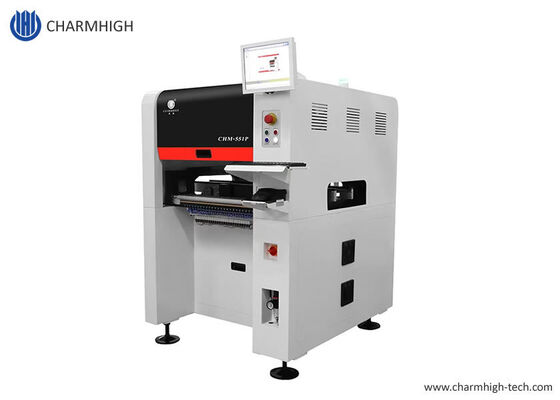

Upgrade CHM-551P 4-head SMT pick and place machine by Charmhigh (updated from CHM-551)
Higher speed 14400 CPH, higher precision 0201~30*30mm area, cast-iron frame with high stability.
Very stable with high precision, 0201 perfect mass production, the best 4 heads model in China.
Automatic PCB conveyor, 50 Feeders 4 heads SMT pick and place robot
CHM-551P SMT Pick and Place Machine (with Auto Nozzle Change) for SMT Batch Production.
0201 supported. CPK Test support. Economic solution for SMT assembly, small batch production.
Updated features compared with CHM-551:
1. Higher speed, from 11500CPH to 14400CPH.
2. Cast-iron frame, higher rigidity.
3. Sleek design, beautiful appearance.
| CHM-551P Specifications | |
| Dimensions | 1020mm(L) x1180mm(W) x 1450mm(H) |
| Weight | 556kg |
| Power Supply | AC220V (50Hz,single phase) 1.5kw. (average power 350w) |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 14400CPH (optimal) |
| Mounting Accuracy | (XY)±0.035mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type |
0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. 0201 to larger component 30*30mm size |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Linux system, equipped with monitor, keyboard, and mouse |
| Drive System |
X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 30mm×30mm); Mark camerax2 |

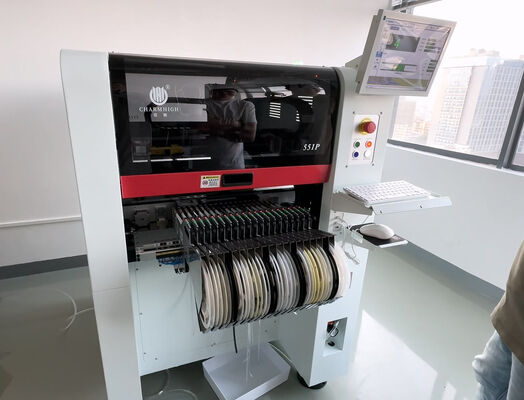

Customer site:
Charmhigh, top Chiense brand.
CHM-551P Parts List
| Item | Quantity | Item | Quantity |
| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1 |
Recommend SMT production line:
1.3250 solder paste printer
2.CHM-551P SMD pick and place robot
3.CHM-830F reflow oven
Please note:
The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for feeders and ANC).
Please purchase this machine with confidence. Enjoy with your pick and place machine!
Tech support:
Kimi Liu: Mob/ WhatsApp: +8613510675756
E-mail: kimi@charmhigh-tech.com
Welcome to follow us on YouTube: https://www.youtube.com/c/KimiLiuCharmhigh/videos
If you want to know more information, please contact us by E-mail.
We will response you at the first time.
