商品の詳細:
|
| フィーダ: | 50pcs Yamahaの送り装置（空気及び電気送り装置） | オペレーションシステム: | Windows （PCおよびキーボードのマウスと来る） |
|---|---|---|---|
| 基準口径測定: | 自動車は印ポイントに目盛りを付ける | 取り付け精度: | (XY) ±0.06mm CPK≥1.0 |
| コンポーネントの高さ: | 12mm | 寸法: | 1050mm ((L) x1050mm ((W) x885mm ((H) |
| ノズル: | 13pcsのノズルライブラリを持つ自動ノズル交換器 | 最大PCBサイズ: | 350mm （L） x270mm （W） （標準）;600mm （L） x350mm （（任意） W） |
| 正味重量: | 200kg | 設置速度: | 11500CPH (最適) IPC9850:8850CPH |

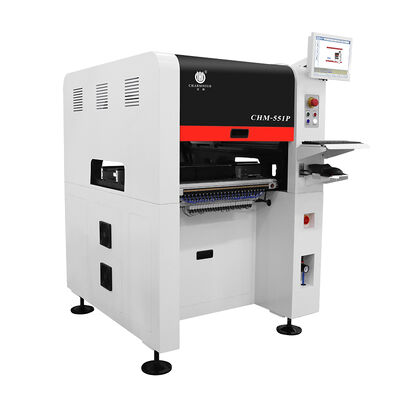

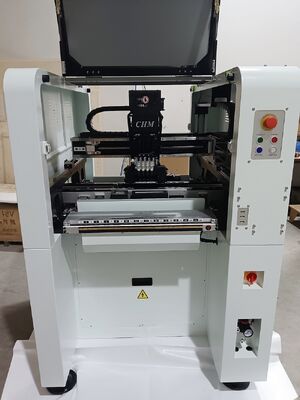

The CHM-551P is a next-generation 4-head SMT pick and place machine engineered for high-precision SMT assembly in electronics manufacturing and R&D applications. Built with a heavy-duty cast-iron frame, this industrial-grade machine delivers superior structural stability, reduced vibration, and significantly improved placement accuracy and speed.

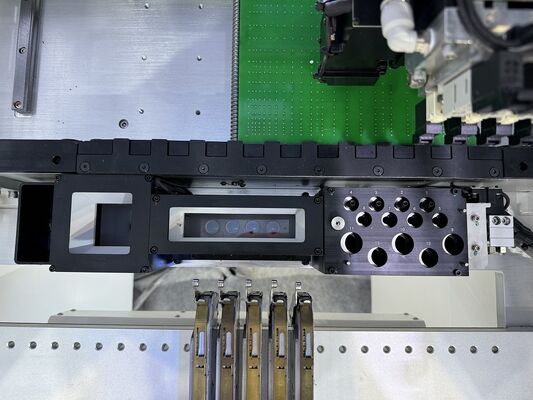

| Dimensions | 1020mm(L) x 1180mm(W) x 1450mm(H) |
| Weight | 556kg |
| Power Supply | AC220V (50Hz, single phase) 1.5kw (average power 350w) |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 14,400 CPH (optimal) |
| Mounting Accuracy | (XY)±0.035mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) 0201 to larger component 30*30mm size |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Linux system, equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 30mm×30mm); Mark camerax2 |
Works with universal standard Yamaha pneumatic feeders & electric feeders (purchased separately):

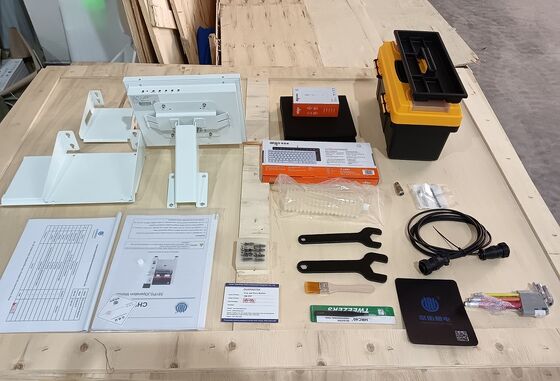

| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1 |
With its cast-iron construction, vertical space-saving design, and enhanced accuracy, the CHM-551P offers industrial-grade SMT placement performance at a competitive price point. 2-4 day lead time with in-stock availability.
The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for pneumatic feeders).
Please purchase this machine with confidence.
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
